Quick Details

  • Type: Natural plants with leaf, seed, bark, root etc
  • Form: essential oil and paste shape
  • Part: Flower, Seeds, Stem, leaf,Bark
  • Extraction Type: Supercritical Co2 Fluid Extraction
  • Packaging: exporting standard package
  • Place of Origin: Liaoning, China (Mainland)
  • Grade: Food & Pharmaceutical Grade
  • Brand Name: LPMIE
  • Model Number: SCFE 10L x 2 = 20L
  • Application filed: herbal essential oil extraction
  • extraction volume: 10 liter x 2
  • extraction pressure: maximum to 400 bar
  • extraction temperature: maximum to 85 C
  • separation pressure: maximum to 280 bar
  • extraction media: supercritical co2
  • extracted raw material: flower, roots, stem, leaf, seeds
  • essential oil purification: 100% purified
  • chemical remains: no chemical remains
  • material of construction: stainless steel 304

Packaging & Delivery

Packaging Details Supercritical Co2 fluid Extraction Machine Supercritical Co2 extraction machine packing in standard plywood case with IPPC fumigated sign for sea transportation
Delivery Time 45-60 days

20L  Pilot Scale Superciritical Co2 Fluid Extraction Machine

Working Principle
  Working Principle

 Supercritical CO2 fluid extraction technology was mainly working for natural product extraction, separation and purification. The whole extracting process diversified and versatile, this device use CO2 as supercritical solvent, according to CO2 solvency ability, through operating and adjusting its parameter( mainly pressure and temperature), thus to change natural product density, CO2 reached into critical state, thereby acquired the inner active ingredient from natural product.
CO2 as critical solvent, with the good nature of non-toxic, inflammable, clean and non-pollution, widely used in essential oil, pigment, active ingredient extraction in foodstuff, pharmaceutical, biological, and cosmetic industries.

Processing Drawing
Processing  Drawing



1. Supercritical Co2 fluid extraction system was very good at thermal sensitivity natural product extraction, as we know, the tradition extraction method usually applied as steam distillation and fractionation, heating will break up thermo-sensitive material in natural product, destroy some active ingredient, SCFE system could working under a constant temperature or even low temperature condition for extraction and separation, keep the material in original characteristics.

2. Co2 as supercritical solvent, which could be recycling working in the whole system, with low energy consumption, non-pollution and accessible features.

3. The SCFE system could accomplish multi-function in one device, through extraction, separation, filtration and rectification; customer could finish different technical process according to different herbal material extraction condition, easy operation and maintenance

Application Range
Application Range

Supercritical Co2 Fluid Extraction mianly applied in many different material extraction:

1. flower essential oil: Lavander, rose
2. fruit frangrance: pectin, phenols
3. spice : garlic or pepper oil
4. natural leaves: tea polyphenols, olive leaf oil
5. natural pigment:  capsorubin, curcumin
6. plant seeds: The wheat shoots blanks oil, Sea-buckthorn oil
7. high value product: propolis, astaxanthin
Equipment Photo
Equipment Photo

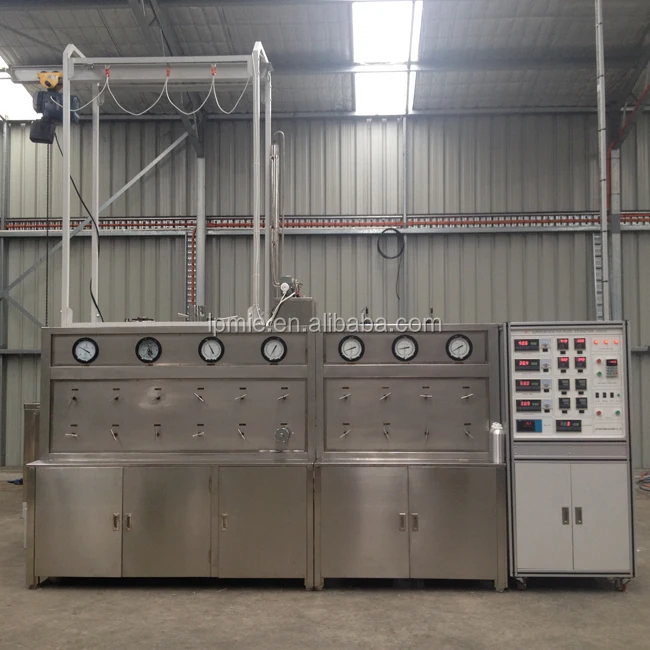

Pilot scale supercritical co2 extraction machine in Hobart, Taminia, Australia(Front View)
Pilot Scale Supercritical Co2 Extraction Machine in Hobart, Tasmania, Australia ( Side View)

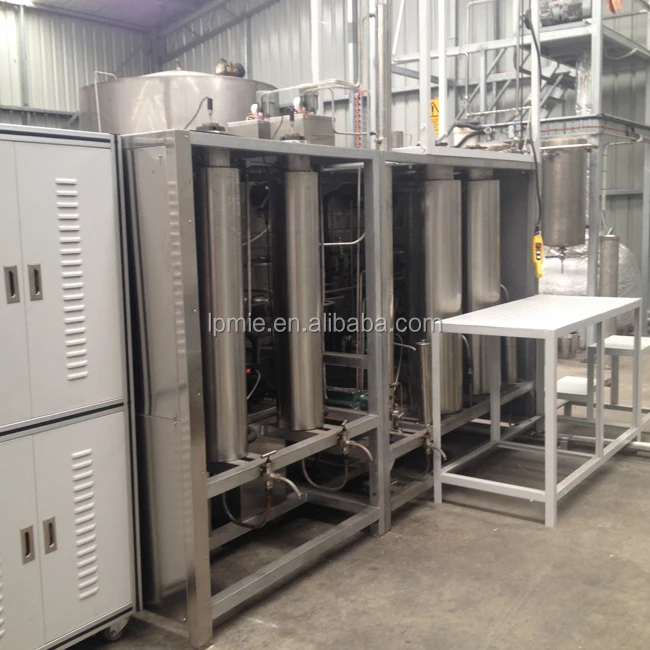

Pilot Scale Supercritical Co2 Extraction Machine in Hobart, Tasmania, Australia ( Back View)

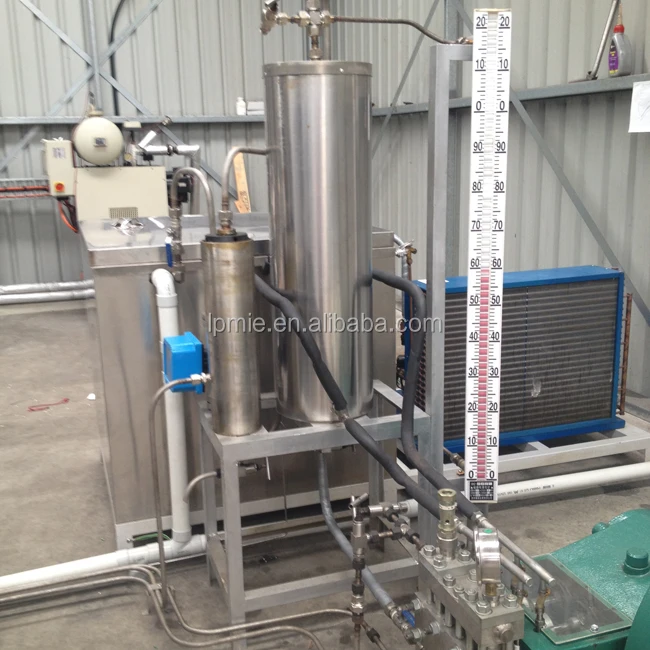

Pilot Scale Supercritical Co2 Extraction Machine in Hobart, Tasmania, Australia ( Cooling Box View)

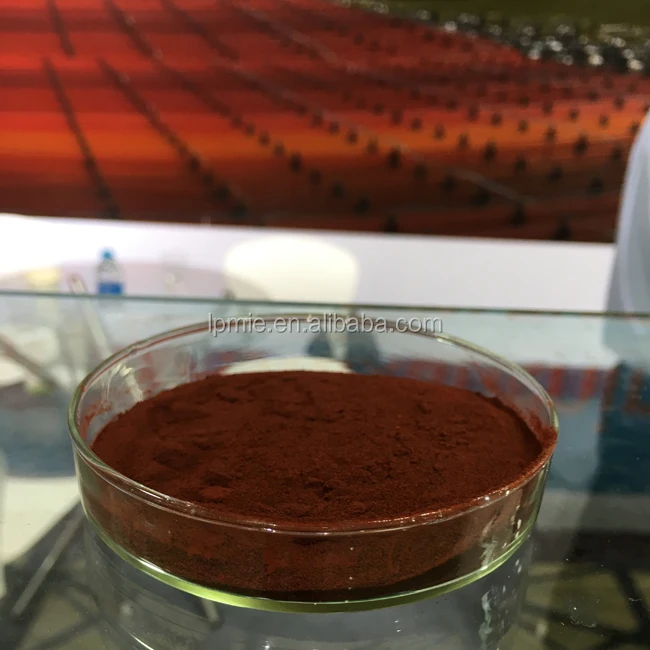

Supercritical Co2 Extracted astaxanthin from Haematococcus pluvialis astaxanthin dried powder
Supercritical Co2 Extracted essential oil from Tasmania Mountain peper mint for prefume basement

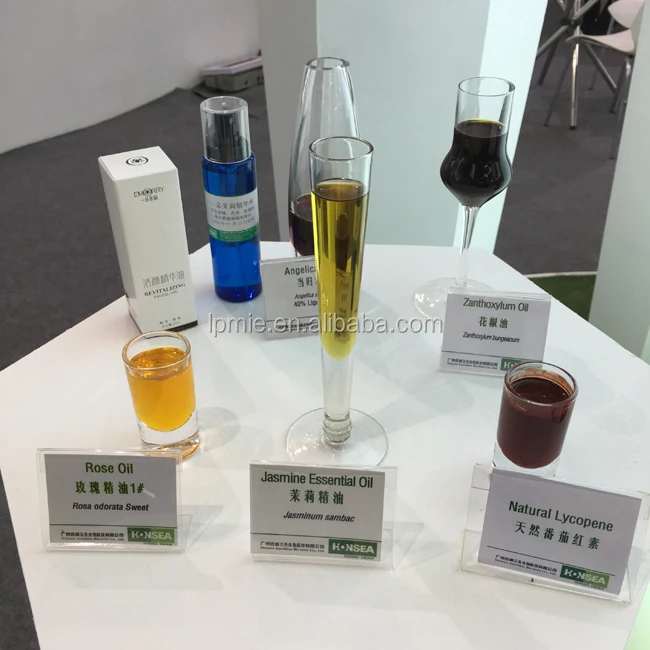

Supercritical Co2 Extracted essential oil from rose, jasmine and lycopene etc
Technical Data
Technical Data



Pilot Scale Supercritical Co2 Fluid Extraction Machine (SCFE)

No.

Model

Temperature

Extractor Volume/ Pressure

Separator Volume/ Pressure

1

10L x 1

0°C-75°C

1 extractor, 380 bar

(3L+1.5L )x 1 set/280 bar

2

10L + 1/2L

0°C-75°C

2 extractors, 380 bar

(3L+1.5L )x 1 set/280 bar

3

10L +10L

0°C-75°C

2 extractors, 380 bar

5L x 2 set/280 bar

4

24L

0°C-75°C

1 extractor, 380 bar

5L x 2 set/280 bar

5

24L +24L

0°C-75°C

2 extractor, 380 bar

10L x 2 set/280 bar

6

50L x 1

0°C-75°C

1 extractor, 380 bar

10L x 2 set/280 bar

7

24L x 4

0°C-75°C

4 extractors, 380 bar

(20L +10L) x 1set/280 bar

8

50L x 2

0°C-75°C

50L x 2 extractors,380 bar

(20L +10L) x 1set/280 bar

9

50L x 3

0°C-75°C

50L x 3 extractors,380 bar

(20L +20L) x 1set/280 bar

10

50L x 4

0°C-75°C

50L x 4 extractors,380 bar

(20L +20L) x 1set/280 bar

For Lab Scale R & D Supercritical Co2 Fluid Extraction Machine, please contact the following picture or visit website at:

You may also interested in other  Separation Centrifuge, Please visit the following website or picture as:



                       Tubular Centrifuge                                                    Peeler Centrifuge





                       Disc Centrifuge                                                    Decanter Centrifuge

Contact Information
Contact Information

1. contact person name: Ms. Daisy Gao

2. contact e-mail address:  daisy (at) lpmie.net

3. skype: daisy.lpmie

4. trademanager: cn220299201

5. mobile phone: +86 138 9827 5931(whatsapp/wechat)
